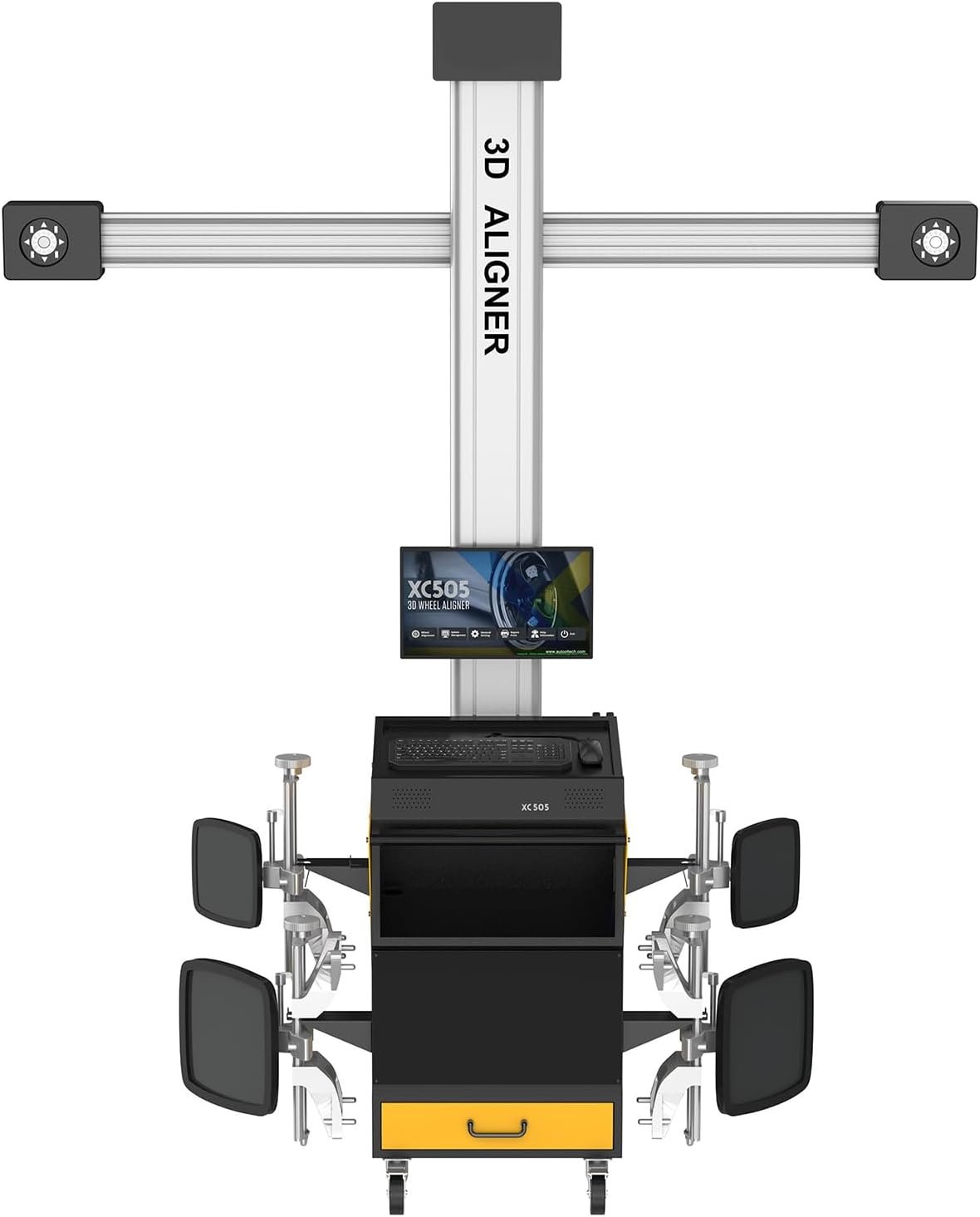

3D Wheel Aligner XC505 Wheel Alignment & Balancing Tools All-in-one Cabinet Full Measurement System 4 Wheel Alignment Tool With Voice Guidance,Car Model Database,Precise Positioning,Multilingual

Price: $7,800.00

(as of Feb 18, 2026 13:36:19 UTC –

Details
)

Product description

XC505 3D Wheel Aligner is used to detect the vehicle wheel alignment parameters, compare them with the original parameters, and guide the user to adjust the wheel alignment parameters accordingly to meet the original requirements, so as to achieve the ideal driving performance of the car, that is, easy to operate, stable and reliable to drive, and reduce tire wear. During the inspection work, the wheel aligner first measures the actual alignment parameters of the car, and then the computer automatically compares it with the value of the corresponding model to calculate the deviation value for the wheel alignment. The maintenance personnel can restore the original wheel alignment parameters by correcting according to the prompts of the aligner.Wheel Alignment & Balancing Tools plays a very important role in the normal driving of the car. After the car has been running for a period of time, due to various reasons, there will be abnormal tire wear, faster wear of parts, heavy steering wheel, vehicle deviation, increased fuel consumption and other phenomena, which are the reasons for the decline of vehicle performance. To eliminate these phenomena and ensure the stability of the vehicle, the most effective way is to perform wheel alignment. The wheel aligner can not only ensure the normal and safe driving of the vehicle, ensure the stability in straight driving, enhance driving comfort, but also reduce the wear of chassis suspension parts, extend the service life of tires, and save fuel consumption.Where to use Wheel Alignment Required?he driving performance of the vehicle has been affected. The most intuitive feeling of the driver is that the vehicle deviates, and the steering direction does not automatically turn back.Damage to the chassis and suspension of the vehicle caused by the accident.Abnormal and severe tires wear(it needs to be considered whether the abnormal wear is caused by abnormal tire pressure. If there is eccentric wear on one side, there may be a deviation in the camber angle).Parts such as axles and suspensions have been disassembled.KKindly Notice: Generally speaking, wheel alignment shall be carried out for new vehicles after three months of driving; It is recommended that the wheel alignment should be done at least once a year or once after the vehicle has driven 10000 km accumulatively; In case of collision due to tire rotation, wheel positioning shall be carried out in time; If the car is used for a long time, such as taxis, trucks, etc., it is recommended to do four-wheel alignment every six months or three months.and this 3D wheel aligner work with 4 post lift, 2 post lift is unavaiable.

XC505 Wheel Alignment & Balancing Tools Full Functions

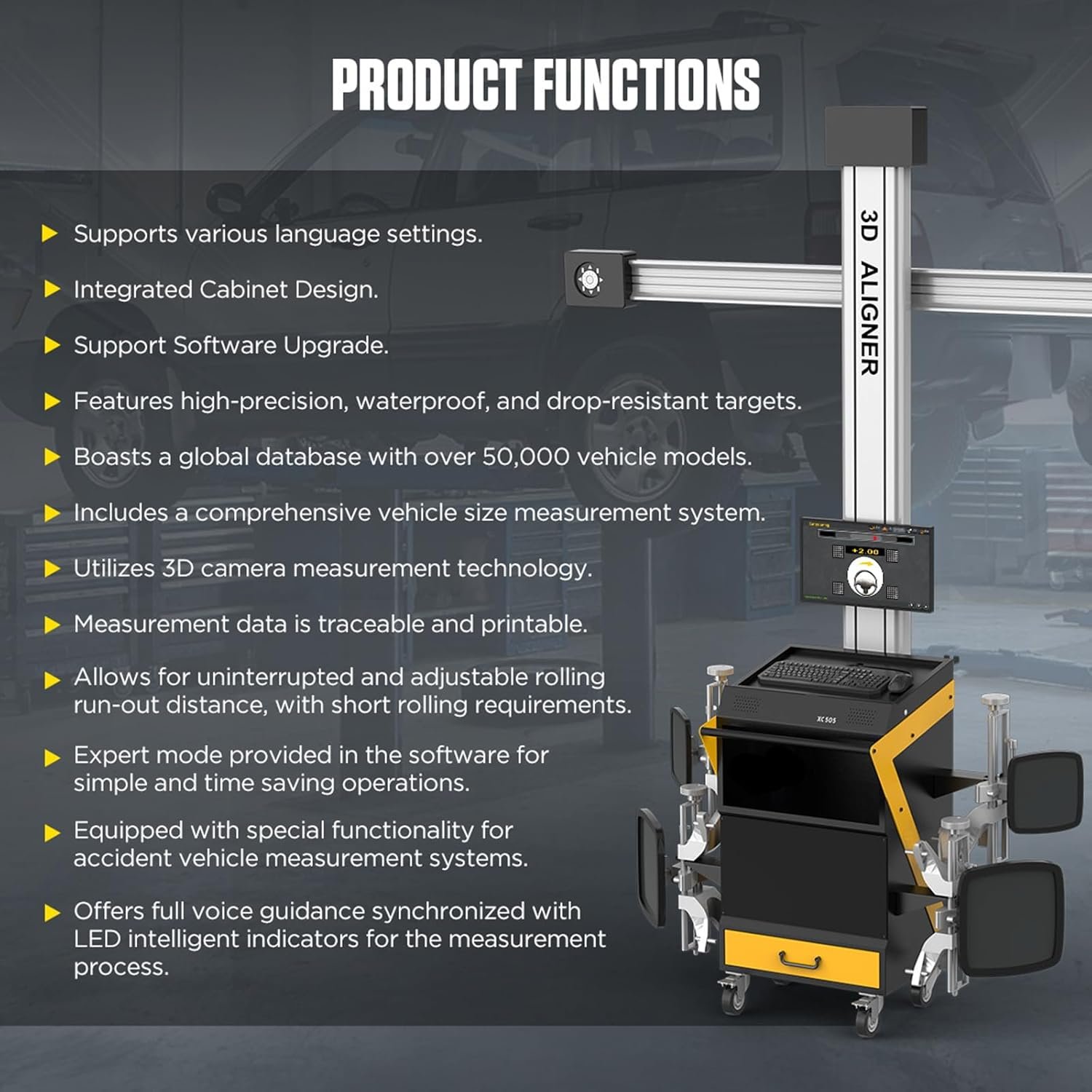

Features high-precision, waterproof, and drop-resistant targetsBoasts a global database with over 50,000 vehicle models.Supports various language settings.Integrated Cabinet Design.Support Software Upgrade.Includes a comprehensive vehicle size measurement system.Utilizes 3D camera measurement technology.Measurement data is traceable and printable.Allows for uninterrupted and adjustable rolling run-out distance.with short rolling requirements.Expert mode provided in the software for simple and time saving operations.Equipped with special functionality for accident vehicle measurement systems.Offers full voice guidance synchronized with LED intelligent indicators for the measurement process.

LATEST 3D CAMERA MEASUREMENT TECHNOLOGY It is equipped with an industry-leading four-wheel positioning optical systemwith a 1.3 mega industrial-grade HD lens and a camera-to-turntabledistance of up to 1500mm-2800mm.There is no need to move thecamera, thus avoiding bumps and allowing a much longer service life.

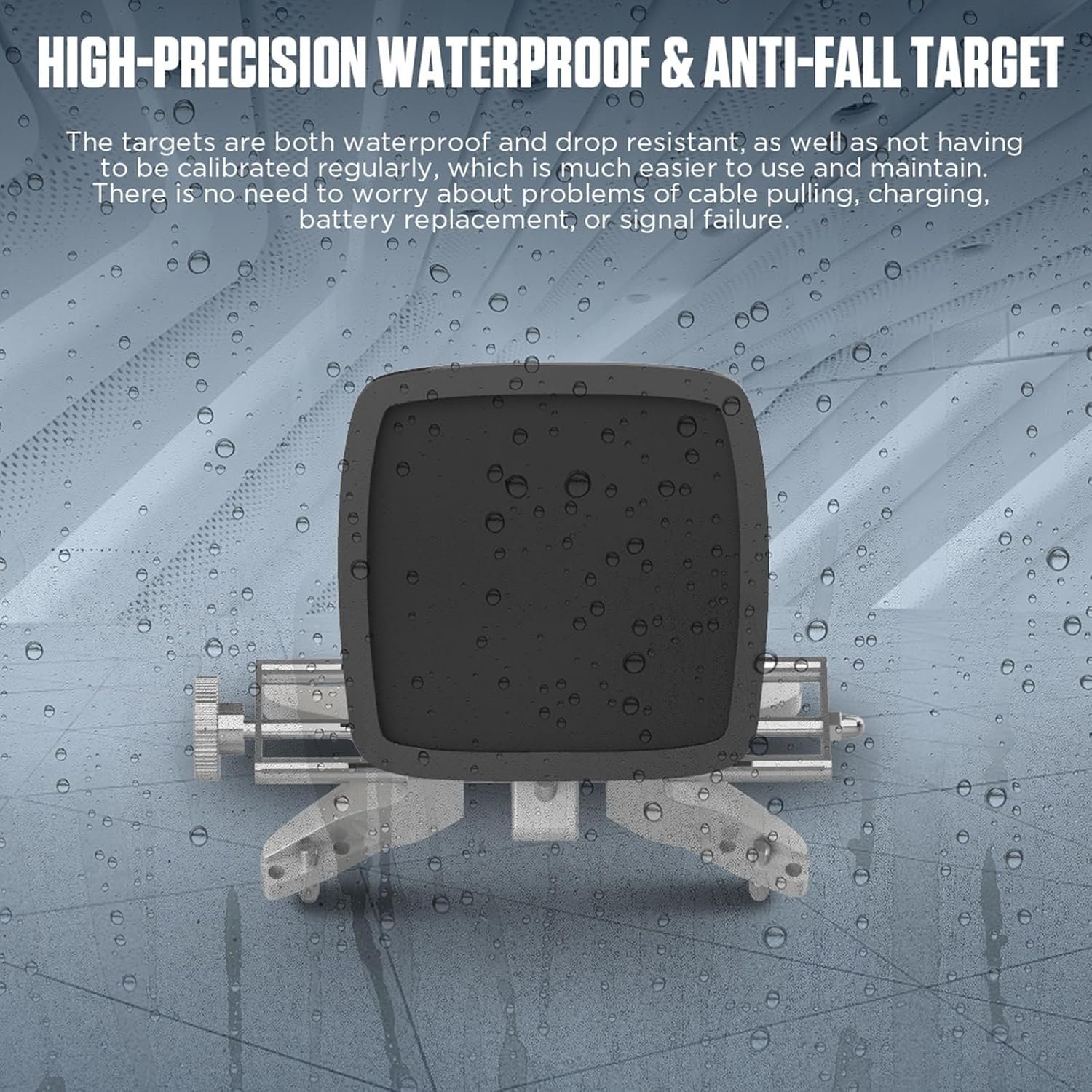

HIGH-PRECISION WATERPROOF & ANTEFALLTARGE The targets are both waterproof and drop resistant, as wellas not havingto be calibrated regularly, which is much easier to use and maintain.There is no need to worry about problems of cable pulling, chargingbattery replacement,or signal failure.

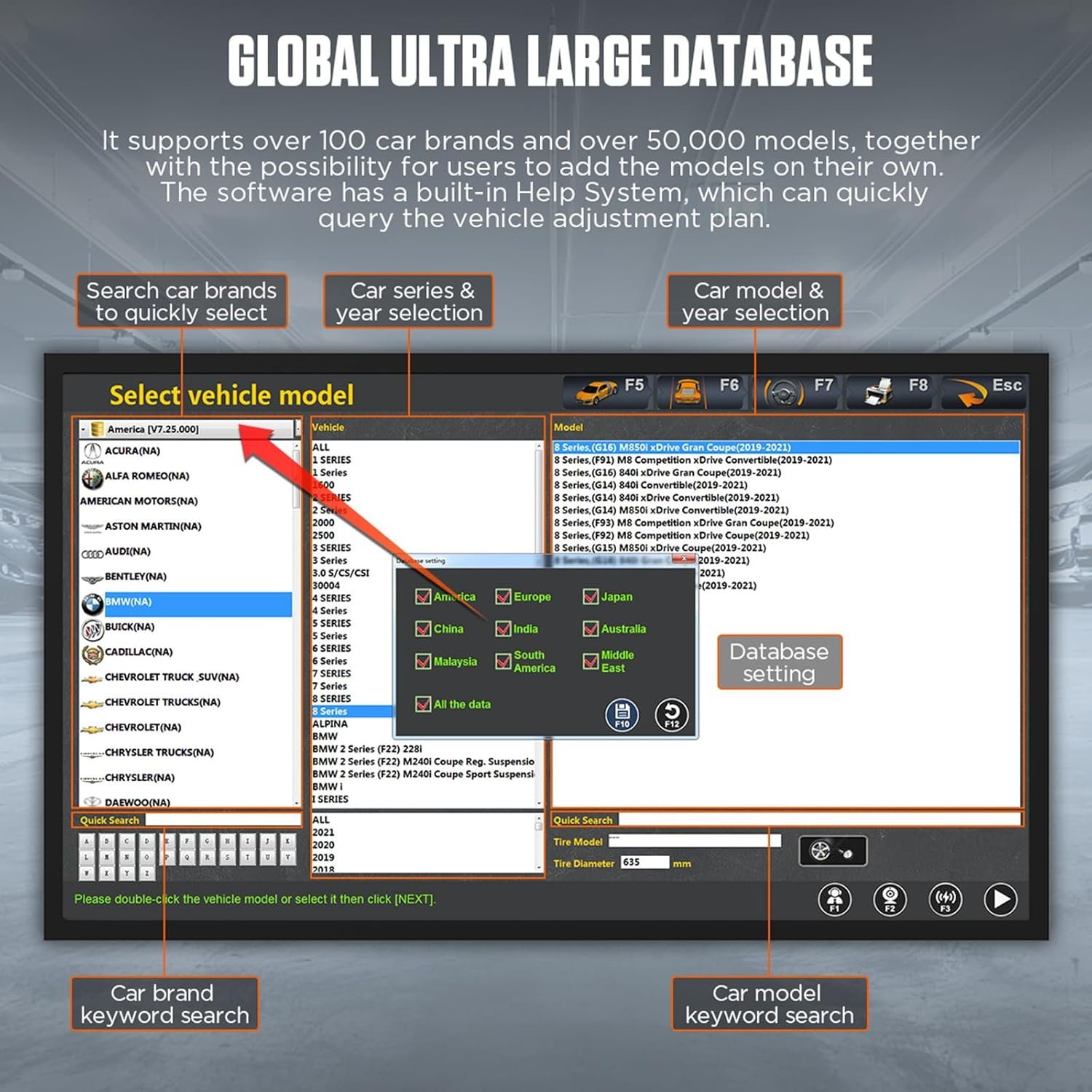

GLOBAL ULTRA LARGE DATABASE XC505 3D Wheel Aligner supports over 100 car brands and over 50,000 models, togetherwith the possibility for users to add the models on their own.The software has a built-in Help System, which can quicklyquery the vehicle adjustment plan.

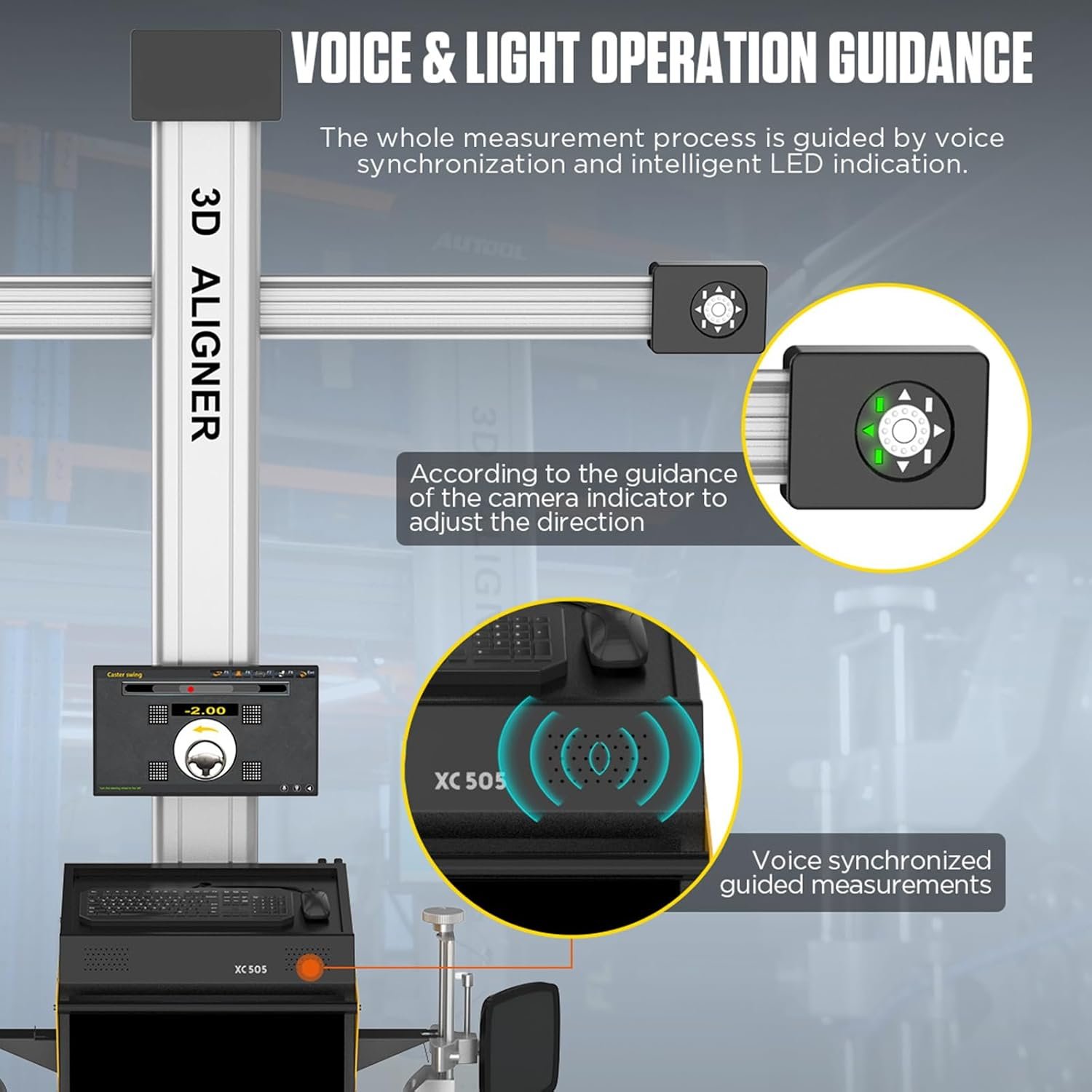

VOICE & LIGHT OPERATION GUIDANGE The whole measurement process is guided by voices synchronization and intelligent LED indication.

MEASUREMENT SYSTEM FOR FULL CAR BODY DIMENSIONS XC505 Wheel Alignment & Balancing Tools Supports various measurements including toe-in, camber,steering axle inclination, caster, thrust angle, track width. track width diff, wheelbase, and wheelbase diff.

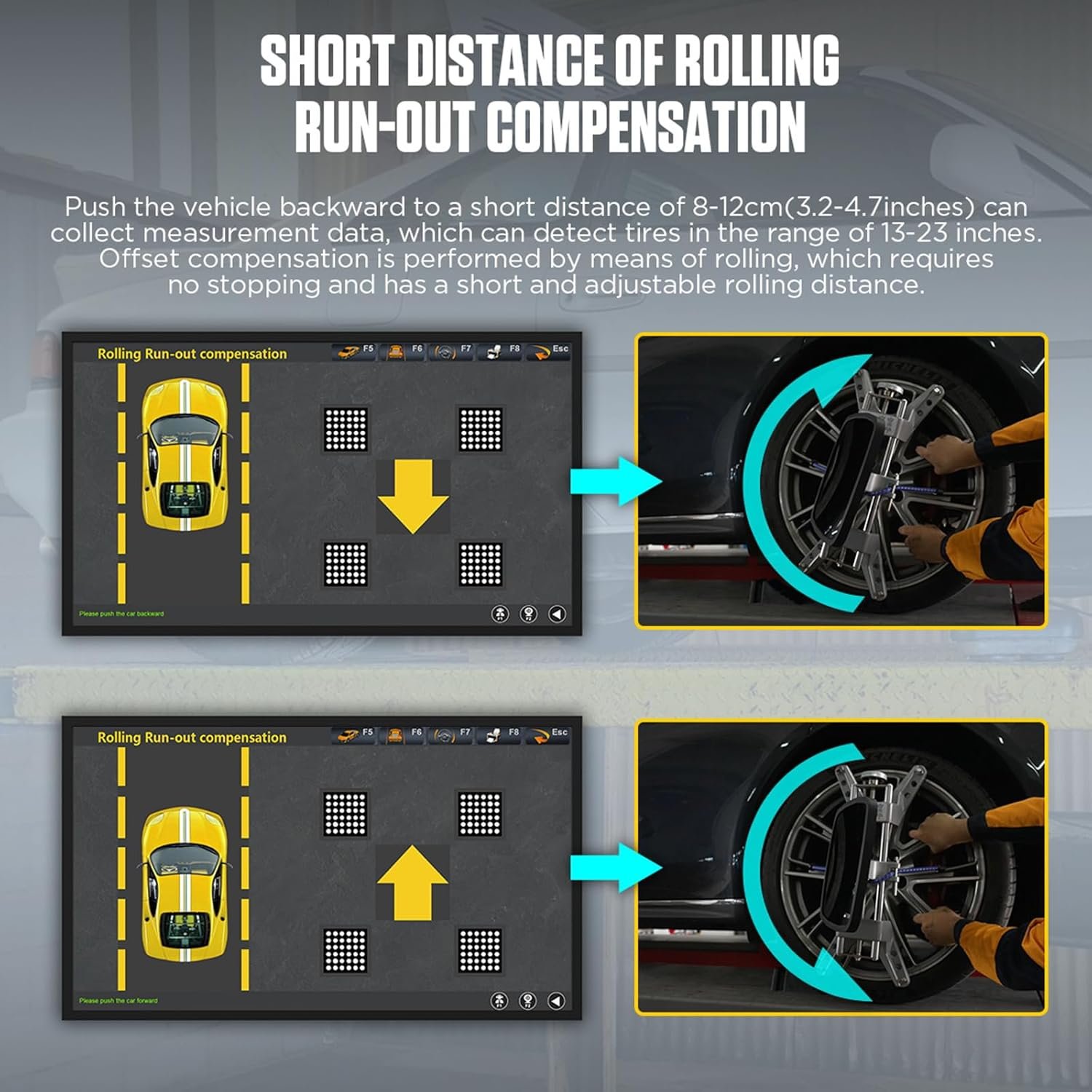

SHORT DISTANCE OF ROLLING RUN-OUT COMPENSATION Push the vehicle backward to a short distance of 8-12cm(3.2-4.7inches) cancollect measurement data, which can detect tires in the range of 13-23 inchesOffset compensation is performed by means of rolling, which requiresno stopping and has a short and adjustable rolling distance.

EXPERT MODE The software adopts expert mode, which is simple, fast, and time-saving to operate. Save more than 30% time than the ordinary wheel aligner.

TEST REPORTS CAN BE TRACED AND PRINTED Test data can be traced and with a printing function, the test.

MULTILINGUAL SUPPORT XC505 4 Wheel Alignment Tool Supports multiple languages, including Chinese, Traditional Chinese English, Spanish, Russian, French, Arabic, Thai, German, Japanese,Portuguese.

SPECIFICATIONS Power supply: AC110V/220V±10% 50/60HzMonitor: 18.5″ color LCD displayResolution: 1920*1080pxLight requirements: no strong infrared light directly illuminates the cameraHeight difference of lift lane: left and right <5cmMeasurable rim size: 10″~23.5″Ambient temperature: 0-50℃Relative humidity: ≤85%

PACKING LIST 1 x Stand column1 x Beam assembly1 x Steering wheel holder1 x Brake pedal depressor4 x Bolt and Rack1 x Computer and 2 x Turntable1 x Column cap and 4 x Target1 x Encryption lock4 x Wheel Clamp1 x Operating Board

SPECIAL FUNCTION DETECTION & ACCIDENT VEHICLE MEASUREMENT SYSTEM Additional Measurement Wheelbase Axis Offset(mm) Track / A Wheel Offset(mm) Diagonal / Center Offset(mm)

Installation Steps

Step 1: First start to install the compents such as columns,beams & standing base mounts.Step 2: Install the standing base.Step 3: Install the monitor and its stand.Step 4: Connect the power cords.Step 5: Connect the video signal line, keyboard and mouse.Step 6: Install the clamps hanger.

Measurement System for Full Body Dimension:XC505 Wheel Alignment & Balancing Tool has comprehensive measurement parameters, and supports data measurement such as toe-in, camber, steering axle inclination, caster, thrust angle, wheelbase and wheelbase diff, track width and track width diff, diagonal.Push the Vehicle Over Short Distance for Measurement:XC505 4 Wheel Alignment Tool, pushing the vehicle over short distance for measurement is practicable (8~12CM ), which allow accurate measurements to be made over short distances, and can detect the wheel hub within the range of 13~23.5 inches; the offset compensation is carried out by means of rolling, which requires no stopping and has a short and adjustable rolling distance.High-precision Target with Waterproof and Fall Resistance:The XC505 Wheel Aligner Balancing Tools is equipped with a professionally designed target, which is waterproof and anti-falling, ensuring the high precision, high repeatability and high reliability of aligning technology.

【 Latest 3D Measurement Technology】 XC505 3D wheel alignment machine is equipped with an industry-leading four-wheel positioning optical system with a 5 mega industrial-grade HD lens and a camera-to- turntable distance of up to 1500mm-2800mm. There is no need to move the camera, thus avoiding bumps and allowing a much longer service life. With removable storage cabinet, it is convenient to store and not easy to lose.
【Widely Used】Measurement system for full vehicle body dimension，this tire machine supports various measurements including toe -in, camber,steering axle inclination, caster, thrustangle, track width, track width diff, wheelbase, and wheelbase diff. It supports over 100 car brands and over 50,000 models, together with the possibility for users, to add the models on their own. The software has a built-in Help System, which can quickly query the vehicle adjustment plan.
【Expert Mode】The software of wheel alignment & balancing tools adopt expert mode, which is simple, fast, and time-saving to operate. Save more than 30% time than the ordinary wheel aligner.Test data can be traced and with a printing function, the test data includes detailed parameters of the vehicle.The whole measurement process is guided by voice synchronization and intelligent LED indication.
【Voice & Light Operation Guidance】 The whole measurement process is quided by voice synchronization and intelligent LED indication.
【Multilingual Support】XC505 3D Wheel Aligner Support multiple languages,including Chinese,English,Spanish, Russian,Arabic, Thai,Portuguese.
【High-precision Waterproof Anti-fall Target】The targets are both waterproof and drop resistant, as well as not having to be calibrated regularly, which is much easier to use and maintain.There is no need to worry about problems of cable pulling, charging,battery replacement, or signal failure. Supports multiple languages, including Chinese, English, Spanish, Russian, Arabic, Thai, Portuguese.
【Short Distance of Rolling Run-out Compensation】Push the vehicle backward to a short distance of 8-12cm(3.2- 4.7inches) can collect measurement data, which can detect tires in the range of 13-23 inches. Offset compensation is performed by means of rolling, which requires no stopping and has a short and adjustable rolling distance. In addition, wheel aligner is equipped with special function detection and accident vehicle measurement system.
【Three Years Warranty, Lifetime Maintenance】 For damage caused by non-human factors, we promises to resend parts for free within 3 years. For any needs, you are warmly welcomed to contact us and we will get back to you ASAP within 24 hours.
